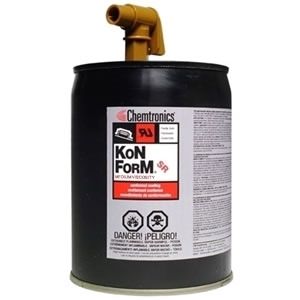

Konform® SR Silicone Conformal Coating - Medium Viscosity

*=required field

Konform® SR Silicone Conformal Coating - Medium Viscosity

Konform® SR Medium Viscosity provides maximum coverage where good flexibility is required, or where extreme temperatures can be encountered. This transparent coating provides ideal protection for both rigid and flexible printed circuit boards. Cured coatings are hydrolytically stable and retain their physical electrical properties after high temperature and humidity exposure. Konform® SR Medium Viscosity will not stress delicate circuit components.

CLICK HERE FOR CONFORMAL COATING SELECTION GUIDE

Features & Benefits

  • Silicone coating stable from -85°F/-64°C to 390°F/199°C
  • High dielectric strength of 1100 volts/mil
  • Meets Mil-I-46058C, Type SR
  • Compliant to IPC-CC-830A
  • RoHS Compliant
  • Contains a UV indicator for thorough Quality Control inspection
  • Easily removed with Electro-Wash® Two Step or CircuitWorks® Conformal Coating Remover Pen

Applications

  • Extends component life by protecting against adverse environments
  • Good insulation properties, excellent flexibility
  • Resists moisture, salt, fungus, corrosive vapors, and severe environments
  • Engineered to withstand heat generated by electronic circuitry as well as climatic temperatures
Specifications MIL-I-46058C Type SR, IPC-CC-830A
Shelf Life 12 months from Production
Shipping Name Coating Solution

FAQ's

What Type of Industry Certifications Are Available for Conformal Coatings?

Certifications are used to separate conformal coatings from general purpose varnishes and shellacs. There are dozens of user and industry specifications, but the two major certifications are most commonly referenced: IPC-CC-830B / MIL-I-46058C This standard originated with the military standard M...

How Do You Remove Conformal Coating?

You may be required to remove a conformal coating from the PCB to replace damaged components or other types of rework. The basic methods as cited by IPC are: Solvent Removal – While most conformal coatings can be dissolved in solvent, you should make sure the solvent won’t damage part...

How Thick Should I Apply Conformal Coating?

Conformal coatings are generally very thinly applied, which provides the best protection possible, but minimizes heat entrapment, excess weight, and other issues.  Typically, conformal coating is applied between 1 to 5 mils (25 to 127 microns). There are four primary ways to measure the ...

Articles

The Ultimate Guide to Conformal Coating

Historically, the only circuit boards going through a conformal coating process were for mission-critical applications, like aerospace. The trend toward greater and greater electronic miniaturization and wearable electronics (PCB + electricity + sweat = problems) has led to a higher demand for the p...
Read This Post

Swipe to View Add to Cart Button

Part # Size Units Per Case
CTSR-MV5

5 gal / 18.5 L container
Minimum order - 10 units
